65220 Motor Spec:

• Model: Φ65 x 220 mm
• Voltage Range: 6-20S
• Maximum Power: 6000 W
• Rated Power: 3000 W
• Rated Current: 60 A @50V
• Maximum Current: 100A @30V
• Insulation Current: AC 500V / 1mA / 3s
• Resistance: 58 m
• Inductance: 170 H
• Three-phase Wire: 3 x 10 AWG (5.5 mm)
• Power Connector: XT90
• Shaft : Φ12 -0.005 / -0.01
• Rated Torque: 6.3 N·m
• Number of slots & poles : 18 N / 6p
• Maximum Torque: 9 N·m
• Waterproof Level: IP68
• Weight: 3.23 kg

Battery box parameters

• Battery outer box size: 371*269*186mm
• Waterproof grade: IP67
• Battery box material: ABS
• Voltage:50.4V
• Cell specifications: Molicel P42A 27100
• Battery capacity: 12S 4P 16.8AH/846.72WH/16800mah.
• Environment: (-20 degrees Celsius + 50 degrees Celsius)
• Charger: 50.4V 5.5A
• Charging time: about 2.6 hours

ESC integrated Spec

• Firmware: 5.2 VESC TOOL3.0
  ESC type: Flipsky 75100
  ESC Drive Mode: Default PPM & UART(customizable to ADC)
  Communication Port: Default USB (customizable to CAN)

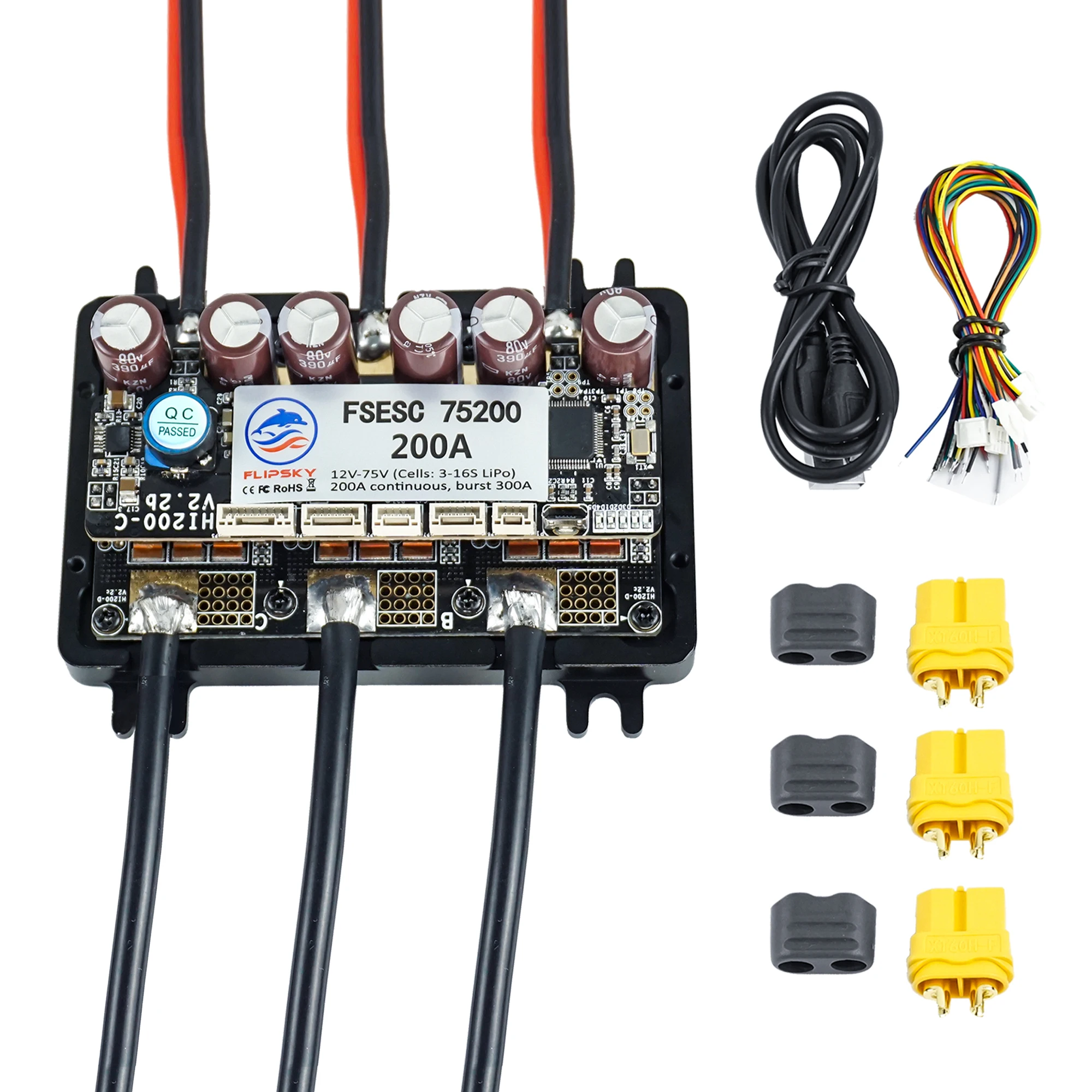

        FSESC 75200                                                           Dual VESC 4 Plus                                          Dual VESC 6 Plus

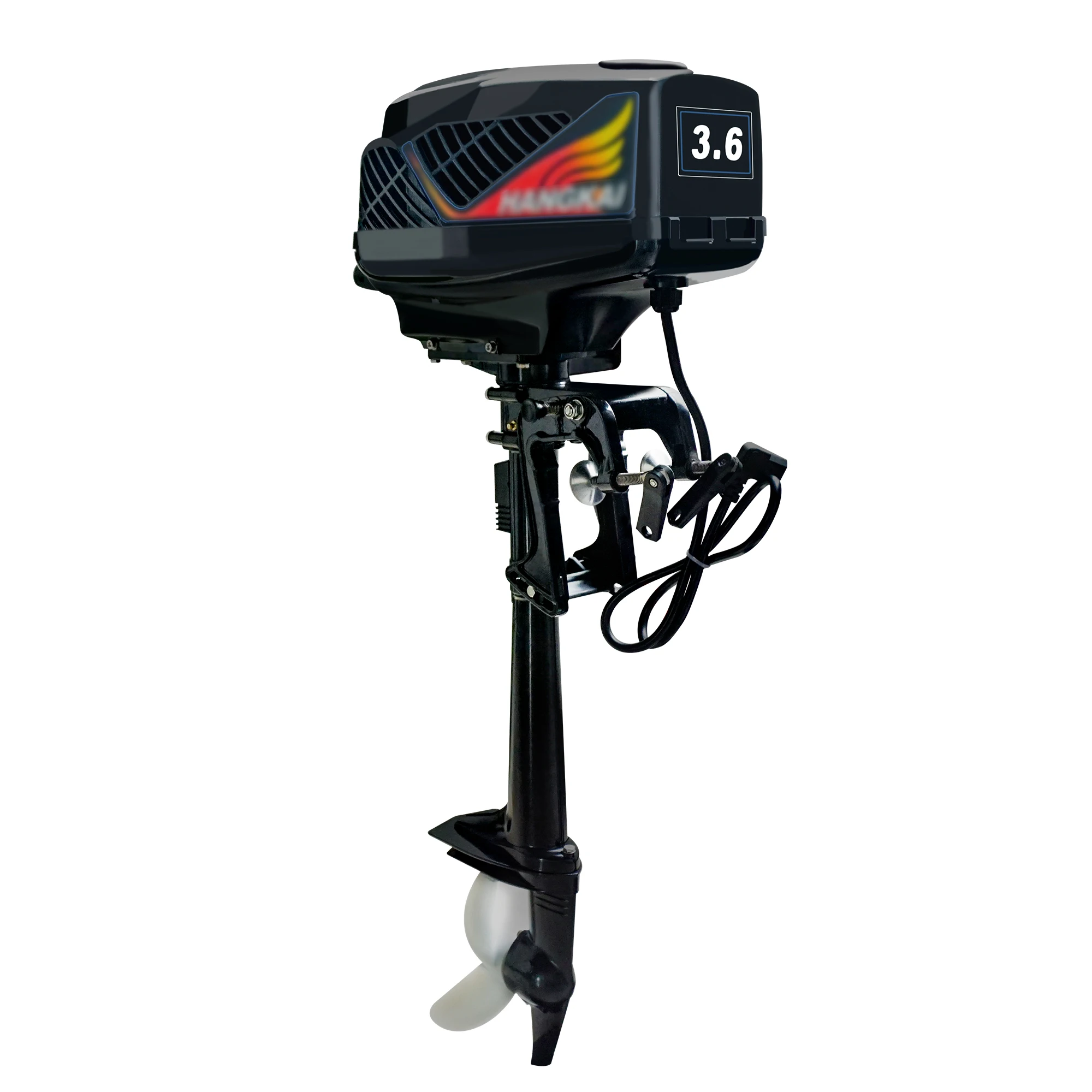

         Water Cooled VESC 6                                                 65161 Motor                                                Outboard Motor
